Spray Foam Insulation, Custom Foam Packaging, Floral Applications

Contractor Equipment

The following equipment is available through Master Pack.

Each Model is shown with its features on the left and its picture on the right. Feel free to contact us if you have any questions.

Guardian A5 Series

Series Features

Standard Transfer Pump Package Consists of 2:1 Ratio Stick Pumps. Diaphragm Pumps also available.

Heated Raider

RS-302 Equipment Features

Hydraulic Systems

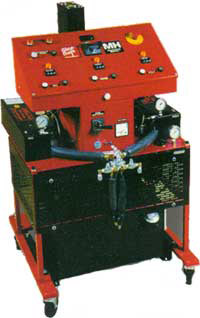

MH System Features

45lbs. 21 kg output per minute
300 ft. /91M automatic heated house
Large surface are heaters- 7000 watts per side (14000) watts total heat
3000 psi/204 bar fluid pressure
190° F/88° C maximum temperature
7.5 HP motor with 2 in. /5cm hydraulic cylinder
Voltage selector dial for hose length
Special wipers seal on ISO and Poly pump to prevent build-up and contamination
5"/12cm pump stroke to reduce wear and tear
4000 psi/272 bar working pressure hoses
LED controls for heaters and hose
Electrical options:
63 amp, 208 volt, three phrase, 60 Hz
63 amp, 380 volt, three phase,50 Hz

MH II System Features

25 lbs./12 kg. output per minute
300 ft./90M heated hose
Large surface area heaters-3000 watts per side (6000 watts total heat)
190° F/88° C maximum temperature
3 HP motor with 1 in. /2.5 cm hydraulic cylinder
1600 psi/109 bar maximum fluid pressure
5 HP motor with 1 in./2.5 cm hydraulic cylinder
2000 psi /136 bar maximum fluid pressure
Special wiper seal an ISO and Poly pump to prevent build up and contamination
LED, solid state controls for heaters
Single and Three phase Electrical options.

Pneumatic Systems

Mini III System Features

20 lbs /9kg per minute output
300 ft. /90M heated hose
Solid State heat controller with LED read out
Large surface area heaters-3000 watts per side
Special wipers seal on ISO and Poly fluid sections to prevent build up and contamination
170° F/82° C maximum material temperature
1600 psi/110 bar maximum material mixing pressure
Pump cycle counter mounted in console
Single and Three Phase Electrical options

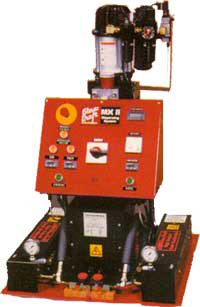

MX II System Features

22 lbs /10kg per minute output
3000 psi /207 bar fluid pressure
4000 watts per side of primary heat
190° F/88° C maximum material temperature
Special wipers seal on ISO and Poly fluid sections to prevent build up and contamination
300 ft. /90M automatic heated hose
Solid State heat controller with LED read out
Large surface area heaters for fast initial startup and more accurate maintenance of heat
Single and Three Phase Electrical options

Super Maxi System Features

15 lbs /7kg per minute output
3000 watts per side (6000 total watts)
190° F/88° C maximum material temperature
3000 psi /204 bar fluid pressure
Solid State heat controller with LED read out
210 ft. /70M automatic heated hose
Special wipers seal on ISO and Poly fluid sections to prevent build up and contamination
Large surface area heaters for accurate temperature
50 amp, 208/240 VAC, single phase, 50/60 Hz

Air Gen Systems

Air-Gen 2010 Features

25 HP V-Twin with Oil cooler,electric start, and Silent-Pack Muffler
220 Volt 110KW Generator with multiple 110 and 220 receptacles,ammeter and thermal breakers
4-Cyliner 18CFM Compressor with Unloader Valve for Continuous operation
7 Gallon Air Tank with metal Regulator/Filter assembly, Pressure Gauge, and Ball Valve
Rubber Isolator Components
12 Volt Heavy Duty Battery
54L x 34W x 42H 520 LBS Less Fuel

Air-Gen 4010

27 HP V-Twin with Oil cooler,electric start, and Silent-Pack Muffler
220 Volt 110KW Generator with multiple 110 and 220 receptacles,ammeter and thermal breakers
4-Cyliner 38CFM Compressor with Unloader Valve for Continuous operation
7 Gallon Air Tank with Air Cooler
Beam Construction
12 Volt Heavy Duty Battery
56L x 34W x 44H 605 LBS Less Fuel
