Refillable Foam Systems
for the Residential / Commercial Building Industry

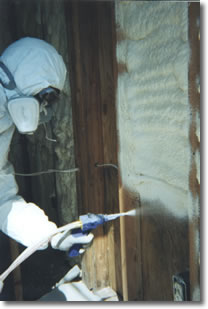

The Touch ‘n Seal Refill System is a two-component, class I fire-retardant, spray polyurethane insulating foam system for large volume users. At 1.75 pcf and 7.12 R-value, Touch ‘n Seal 17 gallon, refillable foam systems offer structural strengthening with exceptional thermal insulation value and sound reduction. Ideal for full building insulation and air barrier sealing. Returns are simplified with prepaid freight and easy pick-up when you’ve emptied the units.
- Economical, lower cost per board foot than other insulation systems
- Air seals and provides thermal and sound insulation
- No external power supply required
- Ideal for full cavity fills or “flash & batt” applications
Yield (theoretical): 2000 + board feet / 170 + cubic feet
Meets ASTM E-84, Class 1, flame spread 25, smoke developed 450
Cure time: 1 minute
Not for use as a fire stop
| ITEM # | DESCRIPTION | PACK/FILL |
| 4505100000 | RF17-1.75 PCF Refillable (A & B Chemical Tanks Only) | 1 | 4505100012 | Foam Applicator w/ 12” Hoses | 1 |
| 4505100035 | Foam Applicator w/ 60’ Hose Kit | 1 |
| 4505100045 | Hose Set – 30’ – Refillable | 1 – 30’ set | 4505100045 | Hose Set – 150’ – Refillable | 1 – 150’ set |
| 4505100025 | Filter Assembly – Refillable | 2 |
| 4505100040 | On/Off Valve – Tank to Hose | 2 |
| 4505100050 | On/Off Valve – Hose to Applicator | 2 |
| 4505100055 | Hose Set – Nitrogen Refillable | 2 |
| 4505100060 | Heater Bands w/ Controls Refill | 1 set |
| 4505100065 | Regulator - Nitrogen | 1 |
| 4505100080 | Nozzle Kit – Calibration | 25/pack |
| 4004529930 | Nozzle Kit, Clear - Conical Spray | 25/pack |
| 4004529940 | Nozzle Kit, Yellow - Fan Spray | 25/pack |
Assembly and Use
Literature
Residential Commercial Data Sheet Quick Start Guide (English) Quick Start Guide (Spanish) Calibration Procedure Maintaining Optimal Chemical Temperature Open Flame & Welding Safety Pressure Balancing Procedure Shut Down & Return Procedure MSDS Component A Component B Technical Specifications Times, Temperatures and Yields
