Spray Foam Insulation

sprays on and stays on

Spray polyurethane closed cell foam has an R-Value of approximately 7.0 per one inch thickness and our open cell foam has an R-Value of approximately 3.8 per one inch thickness (depending upon application). Our foam provides more thermal resistance with less material than any other type of commercial insulation. See more about Closed Cell Foam Insulation & Open Cell Foam Insulation.


BENEFITS OF SPRAY FOAM INSULATION

  • Saves energy cost - 40% energy savings
  • Stops air and moisture infiltration
  • Adds strength to building structure
  • Keeps dust and pollen out

Spray Foam Board Foot Calculator
* Foam Applied Surface Area


Estimated Square Feet Estimated Inches Needed Estimated Board Feet
Result Here

Spray foam insulation is a two part polyurethane system designed to provide greater R-Value. The benefit to the consumer, is that it saves energy cost and adds strength to the product.


SMALL SPRAY FOAM APPLICATIONS UNDER 5000 BOARD FEET
Self Contained Portable Spray Foam System

Thermal leaks are of vital concern in a cold storage building. Great care and detail go into proper sealing of the cold storage envelope, and maintaining that seal.

Few products are more easily utilized, or more effective in maintaining the thermal integrity of a cold storage structure than sprayed-in-place polyurethane foam.

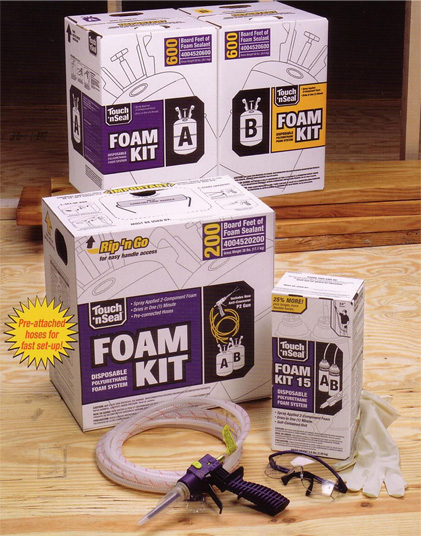

Two-component Foam Kits are designed for use in commercial sealing, insulating, patching, and filling applications. The dispensing systems provide quick, consistent foam flow and fast cure time. Foam Kits are available in fire retardant, high density, low density or standard formulas. Extra nozzles and guns are also available.



foam kit technical information

NO-WARP FOAM
Polyurethane Foam Sealant

no warp foam

TECHNICAL DATA

  • Density: 1.3-1.8 lbs./cu.ft.
  • Thermal Resistance: (ASTM C-518) R-Valve 4.5 per inch thickness
  • Maximum Service Temperature of Cured Foam: 240°ree;F (116°ree;C)
  • Shelf Life: 18 months
  • No CFC's, No HCFC's
  • Contains no urea formaldehyde
  • Safe for wood, aluminum, vinyl and window/door installs


no warp foam around windowyield estimate table

chart

insulates spa

Polyurethane foam is used in numerous marine applications. Foam has superb buoyancy properties and adhesive properties. Polyurethane foam can be poured or sprayed. It can be applied to leaky, cracked hulls or decks.

spray foam boat insulation spray foam in boat

Foam can be applied with our portable disposable Foam System or one may purchase foam in five gallon pails and "hand mix" with a 1:1 ratio.

Toubleshooting for 2 Component Foam

Checking the Gun for Proper Function
Unequal Chemical Flow from the Tanks
Foam Seems to Rise, Then "Melts"
Inadequate Flow from Both Tanks
Temperature Issues
Foam Cures Soft
Foam Is Very White, Instead of Yellow
Foam Cures with a "Crunchy" Texture
Foam is Very Dark in Color
Only One Chemical is Dispensing
Chemical Clean-Up


CLOSED CELL SPRAY FOAM VS OPEN CELL SPRAY FOAM


CLOSED CELL SPRAY FOAM

Closed Cell SPF reduces energy use in building beyond it stated R-Value (R-Value of 7/inch)

  • One set (1 drum A & 1 drum B) of chemical yields 5000 board feet of foam
  • Provided a continuous barrier
  • PREVENTS moisture infiltration through air leakage
  • Minimizes dew point problems & condensation
  • Avoids thermal bridging
  • Resists heat movement in all directions
  • Helps reduce exterior noise
  • Creates a barrier against gas & odor
  • Retards insects & rodent penetration
  • Adds structural integrity to the house
  • Meets Class 1 requirements
OPEN CELL SPARY FOAM

Half pound Open Cell SPF reduces energy use in buildings beyond its stated R-Value (R-Value of 3.8-4/inch)

  • On set (1 drum A & 1 drum B) of chemical yields 16,000 board feet of foam
  • Provides a continuous barrier
  • DOES NOT prevent total moisture infiltration
  • Prevents air leakage
  • Minimizes dew point problems & condensation
  • Avoids thermal bridging
  • Resists heat movement in all directions
  • Helps reduce and absorbs exterior noise
  • Excellent sound abatement
  • Creates a barrier against gas & odor
  • Retards insects & rodent penetration
  • Adds limited structural integrity
  • Reduces or eliminates currents within walls
  • Meets Class 1 requirements
