Toubleshooting for 2 Component Foam

The Touch ‘n Seal Refill System is a two-component, class I fire-retardant, spray polyurethane insulating foam system ideal for new assembly and repair of all types of transport vehicles. At 1.75 pcf and 7.12 R-value, Touch ‘n Seal 17 gallon, refillable foam systems offer structural strengthening with exceptional thermal insulation value and sound reduction. Ideal for trailers, vans, reefer bodies, emergency response vehicles, buses, aircraft and personal watercraft. Returns are simplified with prepaid freight and easy pick-up when you’ve emptied the units.

  • Economical, lower cost per board foot than other insulation systems
  • Portable, refillable system
  • No external power supply required
  • Dispenses, expands and cures in seconds – perfect for quick, efficient repairs
Shelf Life: 12 months in unopened canisters Yield (theoretical): 2000 + board feet / 170 + cubic feet Meets ASTM E-84, Class 1, flame spread 25, smoke developed 450 Cure time: 1 minute Not for use as a fire stop

ITEM # DESCRIPTION PACK/FILL
4505100000 RF17-1.75 PCF Refillable (A & B Chemical Tanks Only) 1
4505100012 Foam Applicator w/ 12” Hoses 1
4505100035 Foam Applicator w/ 60’ Hose Kit 1
4505100045 Hose Set – 30’ – Refillable 1 – 30’ set
4505100045 Hose Set – 150’ – Refillable 1 – 150’ set
4505100025 Filter Assembly – Refillable 2
4505100040 On/Off Valve – Tank to Hose 2
4505100050 On/Off Valve – Hose to Applicator 2
4505100055 Hose Set – Nitrogen Refillable 2
4505100060 Heater Bands w/ Controls Refill 1 set
4505100065 Regulator - Nitrogen 1
4505100080 Nozzle Kit – Calibration 25/pack
4004529930 Nozzle Kit, Clear - Conical Spray 25/pack
4004529940 Nozzle Kit, Yellow - Fan Spray 25/pack


Video

Assembly and Use

Literature

Transportation Data Sheet Quick Start Guide English Quick Start Guide (Spanish) Calibration Procedure Maintaining Optimal Chemical Temperature Open Flame & Welding Safety Pressure Balancing Procedure Shut Down & Return Procedure MSDS Component A Component B Technical Specifications Times, Temperatures and Yields


Liner Bond Trailer Adhesive
Product #4004517100

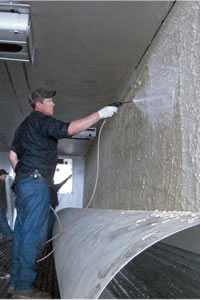

Liner Bond is a one-component foam adhesive used inside refrigerated trailers to bond fiberglass liners to prepared spray foam insulation and aluminum posts.
